ADAPTABLE GRAVEL ADVENTURES

Eight Bells GRAVEL & ADVENTURE

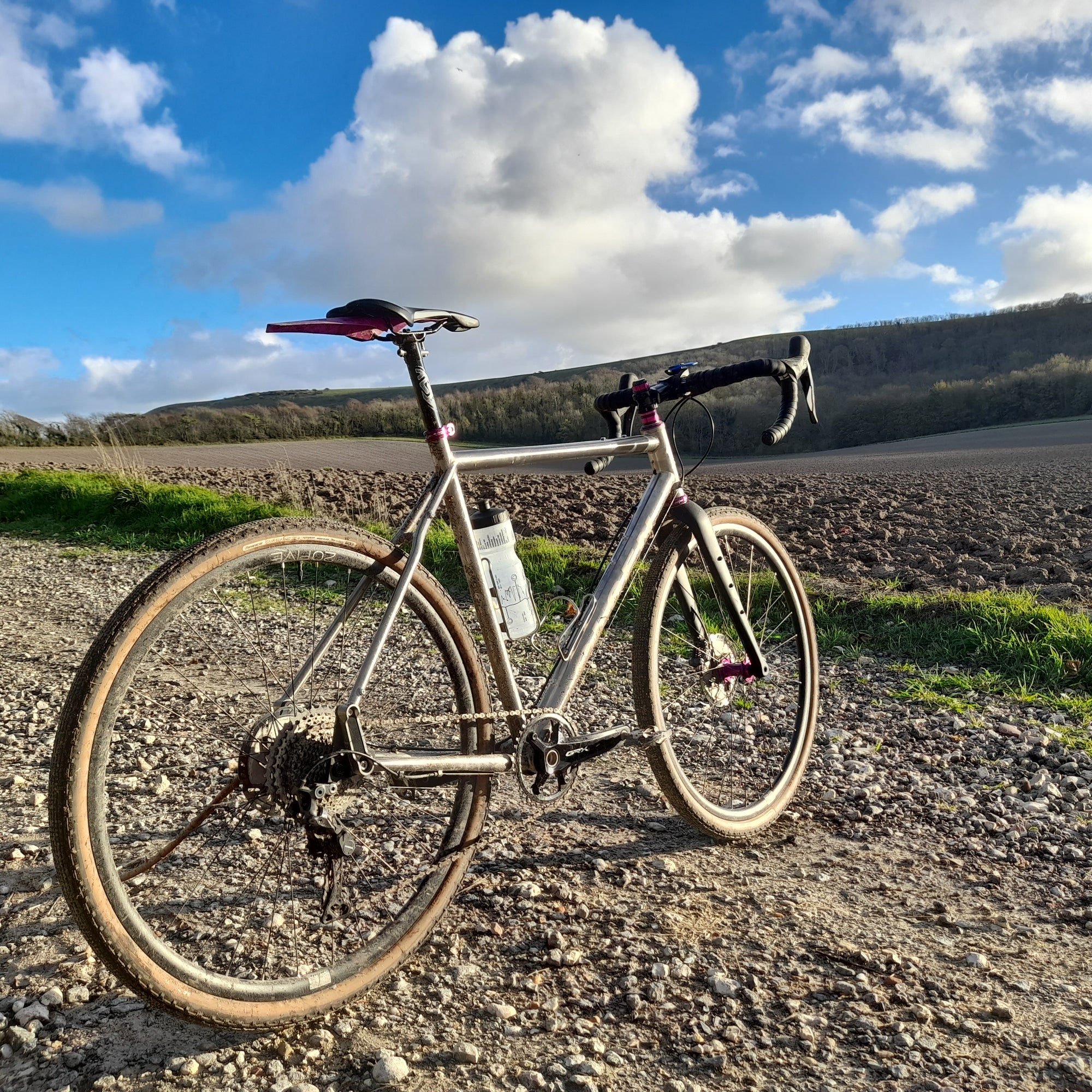

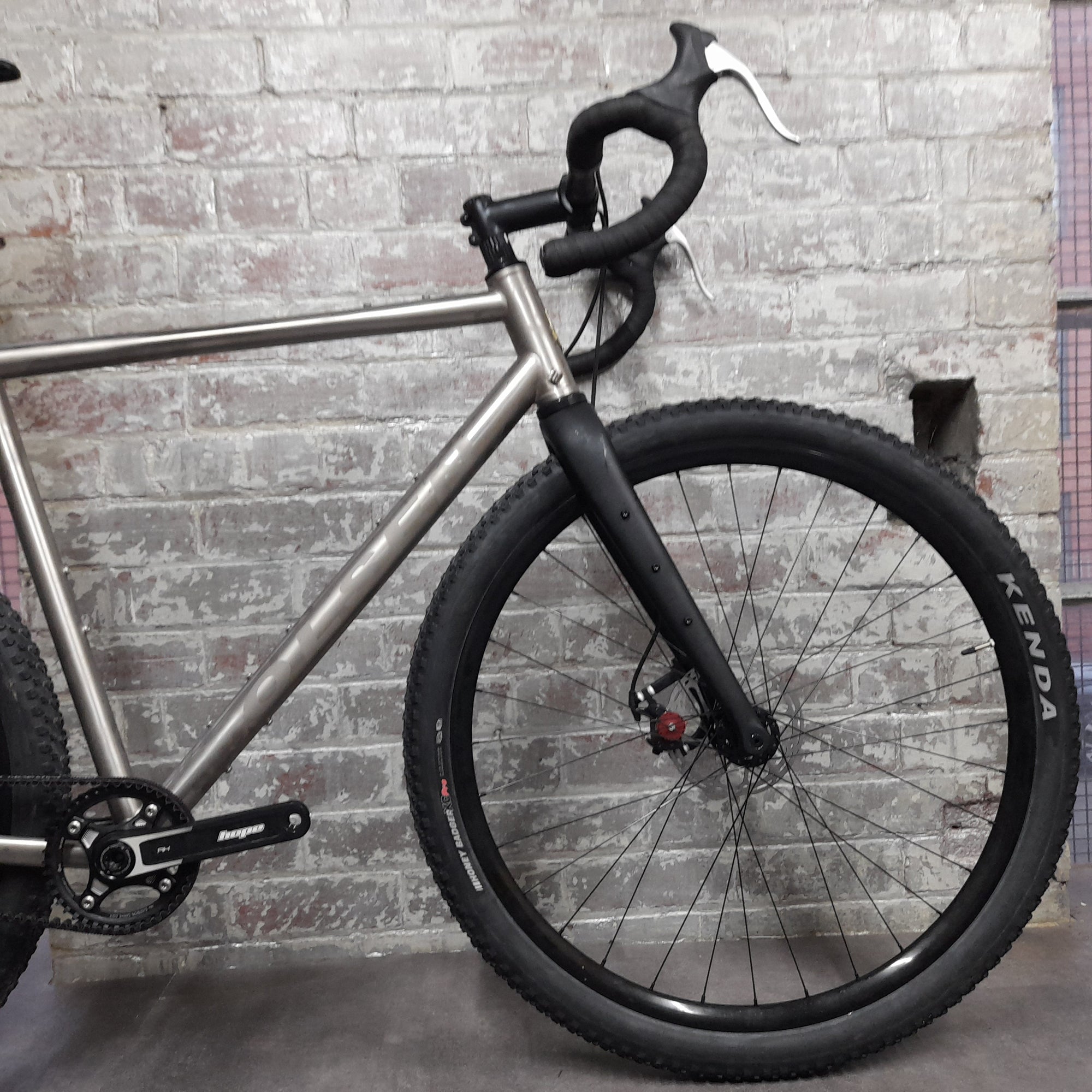

The Eight Bells Frame is Gravel to the MAX. This Gravel bike has been calibrated to run drop bars with larger tyres. We have taken everything that we have learnt from mountain and adventure bikes and adjusted the geometry for drop bars. Wider tyres mean more grip and more comfort on those long fire roads, this bike will take you places and back again.

The Eight Bells is the ideal bike for GRINDURO Events and COMMUTEERING. Commuting the long way home instead of going to the gym. This is your Bike has 65mm tyre clearance and will run up to 29x2.1” or 700x50c tyres. Wider tyres mean more grip and more comfort on those long fire roads, this bike will take you places and back again.

The Eight Bells has been designed a drop bar geometry fitting up to 50mm tyres. It is at home on forest roads with a sprinkling of gravel and dirt ruts. It is part commuter part adventure. You can ride this bike fixed or single speed. Great for shouldering up cyclo-cross climbs or built into a an Alfine or Rohloff hub to load up with touring luggage. The Eight Bells can run 415mm A-C Lauf GRIT Gen3 suspension forks...

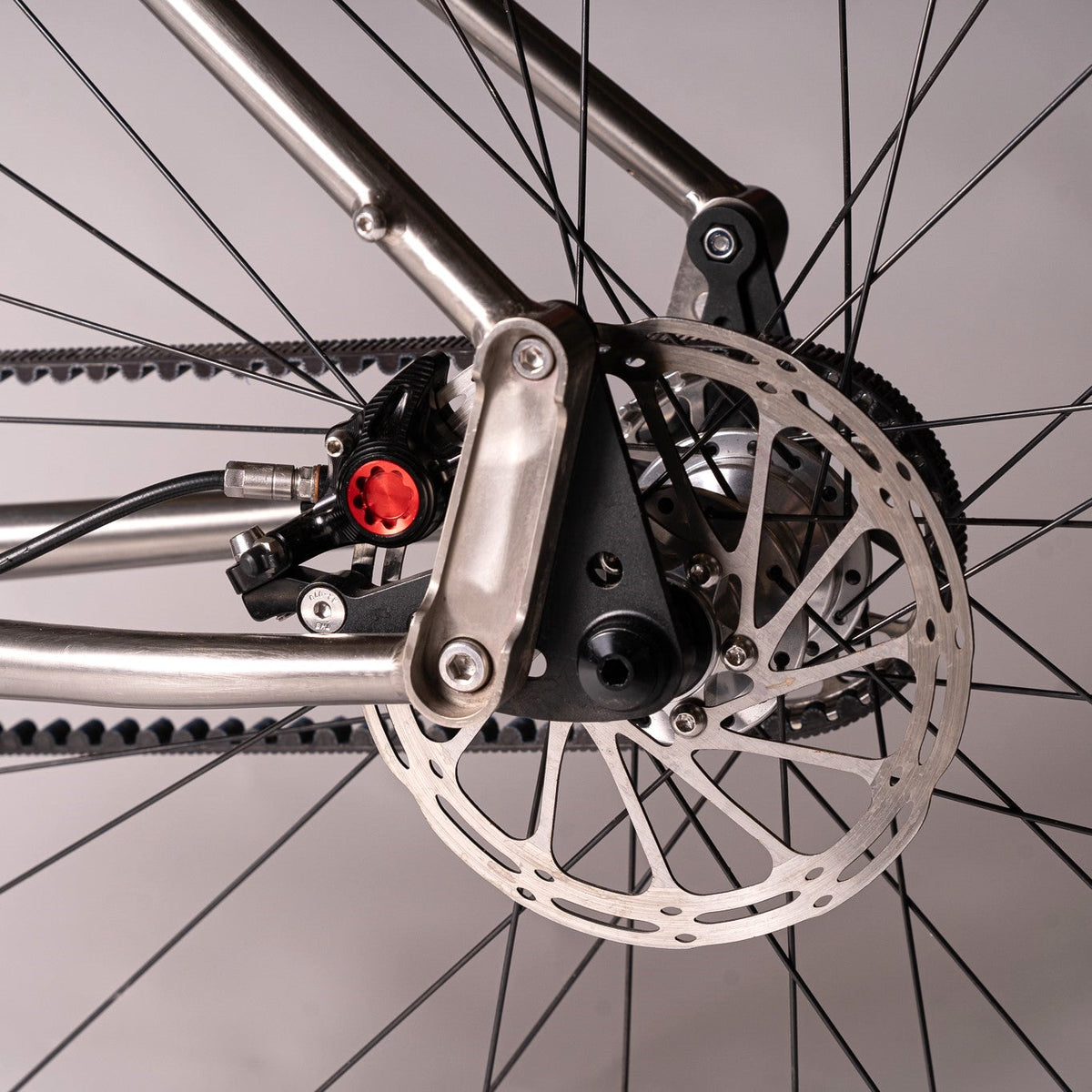

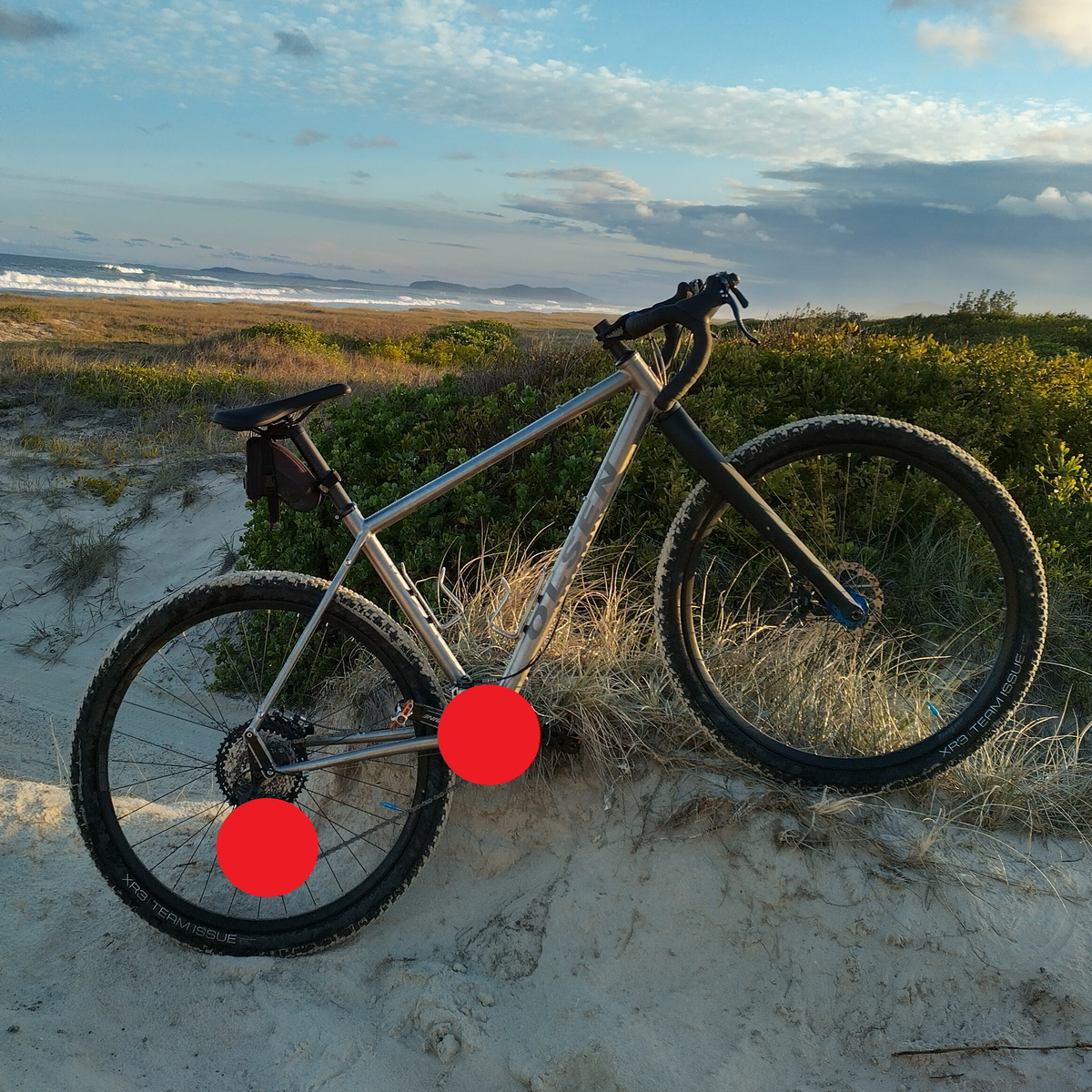

rocknrollout dropouts

The RocknRollout Dropout is at the heart of the OLSEN frame design. We have focused our design around the rear derailleur dropout, but taken it further. Most bicycle frames have replaceable dropouts, but they do not allow for anything other than a derailleur. This idea came from the fact that UK riders often have a winter bike, which is often single-speed.

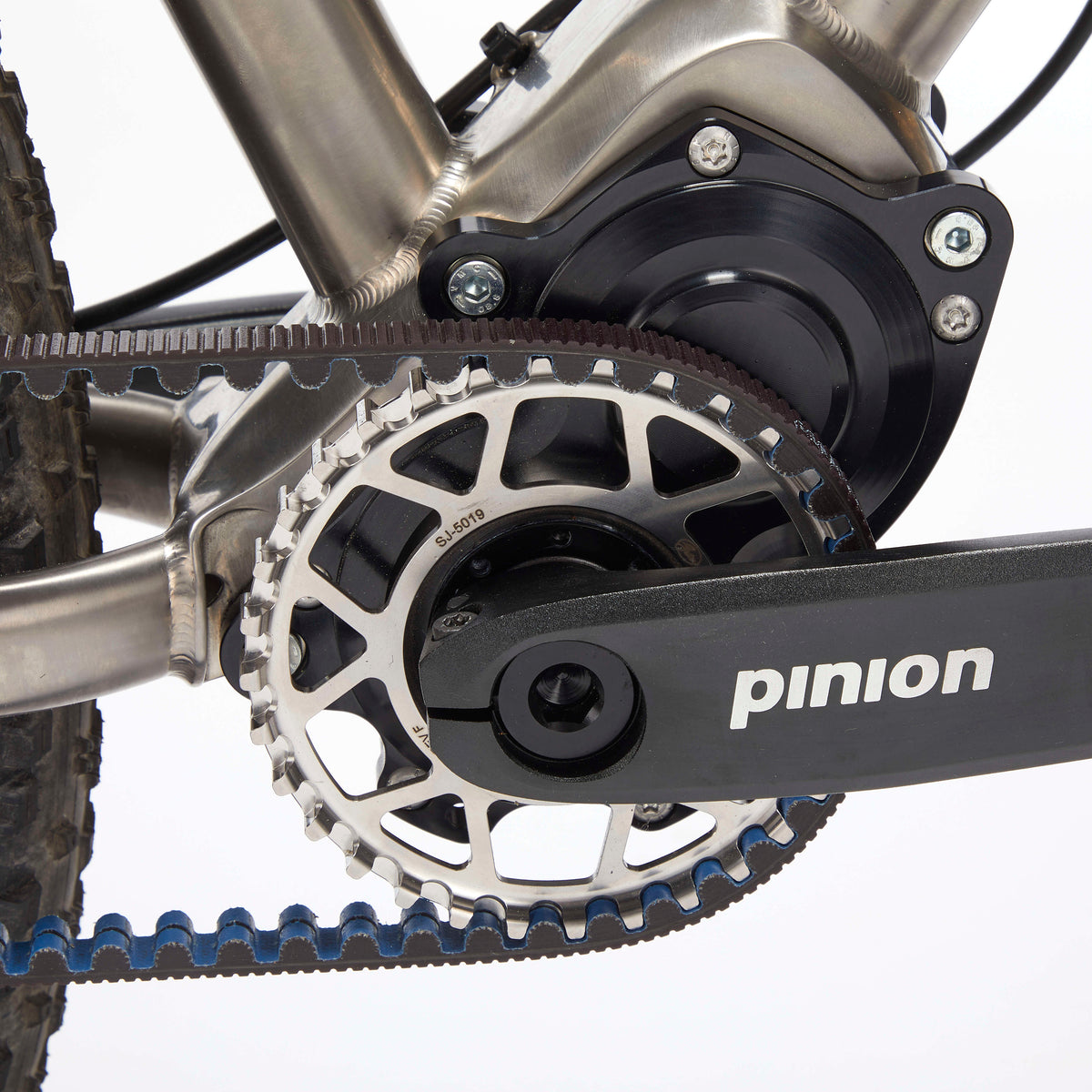

t47 x 92 bottom bracket

There is a lot going on in this part of the bike frame. Tyre and chainring clearance, but also frame stiffness. T47 internal keeps the bottom bracket nice and wide, while resolving the issues with PF92.  A 92mm shell allows the chainstays to be wider, providing more tyre clearance.  92mm also means that the chainstays can be welded wider on the frame, making the bottom bracket area stiffer for belt drive use.

headsets

I chose the straight 44mm Headset "standard" for several reasons. They are straight and keep a simple look, while hiding their versatility. Zero Stack 44mm (ZS44) top or bottom cups and the External Cup 44mm (EC44) bottom cup. In SHIS codes 44/44 allows for both Tapered Carbon fork steerers using ZS44/EC44 and is backward compatible with straight steerers with either a crown reducer or a ZS44/ZS44 headset.

rohloff compatible

If you're planning a long-distance bike packing tour, one of the best upgrades you can make to your bike is to switch to a Rohloff geared hub. A Rohloff Speedhub offers a number of benefits over a traditional derailleur system.
Its durability, smooth shifting, and wide range of gears make it the perfect choice for touring on any terrain.

how it works

Place a deposit to secure your delivery slot. (Refundable deposit £ 1,000.00) and Stevo the Olsen Bike designer, will work with you to create a design before the next stage.

frameset

Price EX-VAT: £2999
RRP Price with VAT: £3599

  • Titanium Frame
  • Kinesis Gravel fork
  • Hope Headset
  • Hope or Praxis Bottom Bracket

This can become the basis of the bike of your dreams that you can build up with spares.

We can also build the 8-Bells up as a Gates Carbondrive Singlespeed or with a Rohloff Speedhub.

Email us for any special requirements.

Shimano GRX bike

Price EX-VAT £6499
RRP Price with VAT £7799

  • Frame: Titanium
  • Fork: Kinesis Gravel fork
  • Groupset: GRX810
  • Brakes: BR-RX810 calliper.
  • Brake Levers: GRX810 STI
  • Rear Mech: RDRX812 GRX
  • Cassette: CS-M8000 11 - 40T
  • Chainset: Hope RX or GRX chainset
  • Chain: Ultegra / XT M8000
  • Bottom Bracket: Praxis T47x86 Inboard 24mm
  • Saddle: SELLE ITALIA X1
  • Seatpost: Olsen Titanium 31.6mm
  • Disc Rotors: 160/160mm
  • Wheels: Hope Fortus 20 Pro5 Hubs

SRAM XPLR ASX BIKE

Price EX-VAT £7499
RRP Price with VAT £8999

  • FRAME: Titanium
  • FORK: Kinesis Gravel fork
  • Groupset:SRAM Red XPLR 12 Speed
  • Brake Left: Red AXS Shifter
  • Brake Right: Red AXS
  • Rear Mech: SRAM eTAP AXS
  • Cassette: SRAM XPLR XG-1271
  • Chainset: Hope RX or SRAM Red 1
  • Chain: SRAM Red FlatTop
  • Bottom Bracket: SRAM DUB 29mm
  • Saddle: SELLE ITALIA X1
  • Seatpost: Olsen Titanium 31.6mm with Hope Clamp
  • Disc Rotors: 160/160mm
  • Wheels: Hope Fortus 23 Pro5 Hubs
