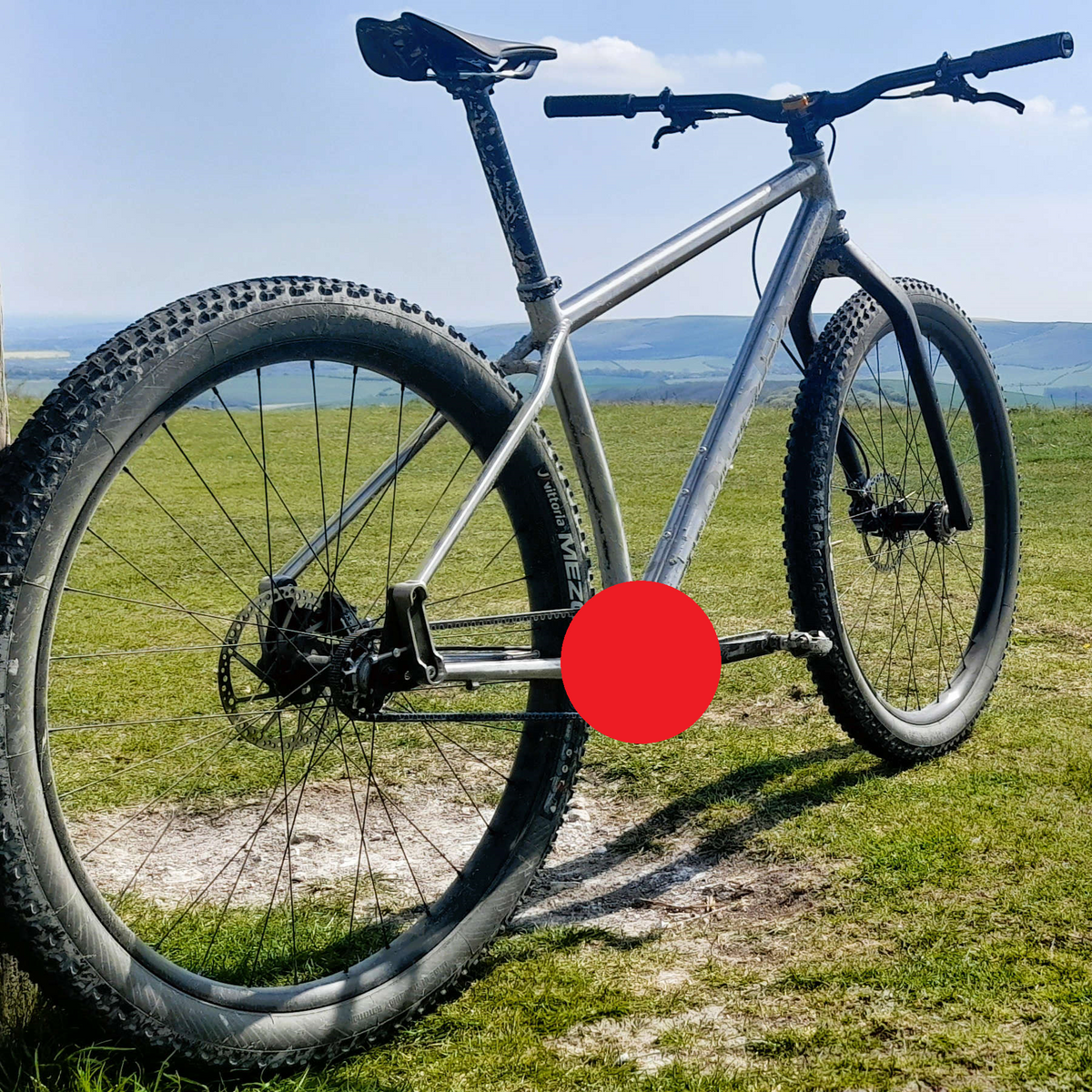

Tiger Titanium Bikepacking Bikes

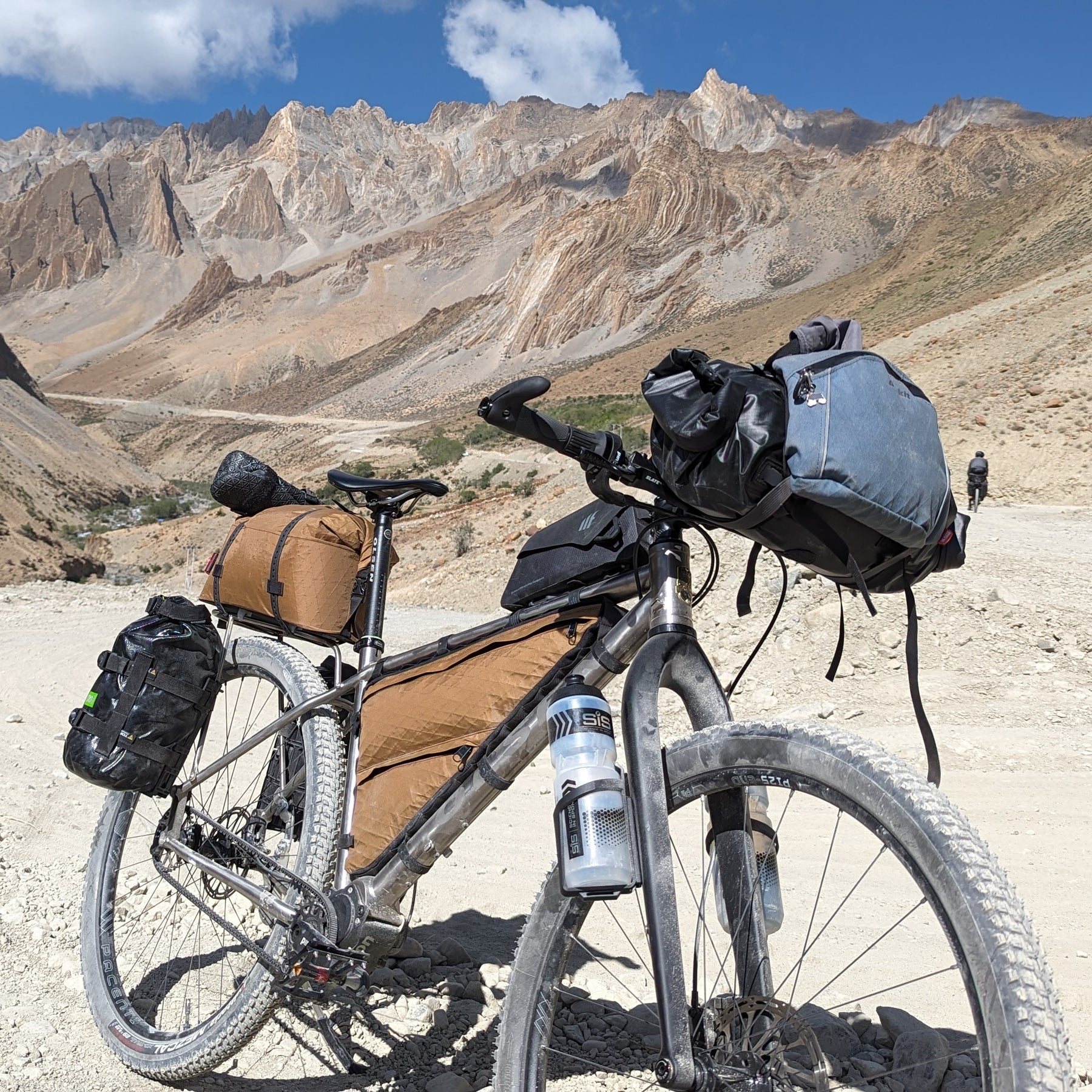

The TIGER frame is our long distance Cross Country 29er plus frame, making it ideal for Bikepacking. This is ideal for long rides in the Brecon Beacons, Bear Bones or outer Mongolia. The Tiger has a large cockpit and is perfect for tall riders. Fitting up to 29x2.8” tyres the Tiger is a modern twist on an XC bike, for those who want high volume tyres for grip control and comfort. This frame is at home with a Rigid or 120mm suspension fork.

The Tiger has a longer cockpit (than the Swan & Lamb) and is perfect for tall riders. It also fits up to 29x3.0” tyres the Tiger is a modern twist on an XC bike, for those who want high volume tyres for grip control and comfort.

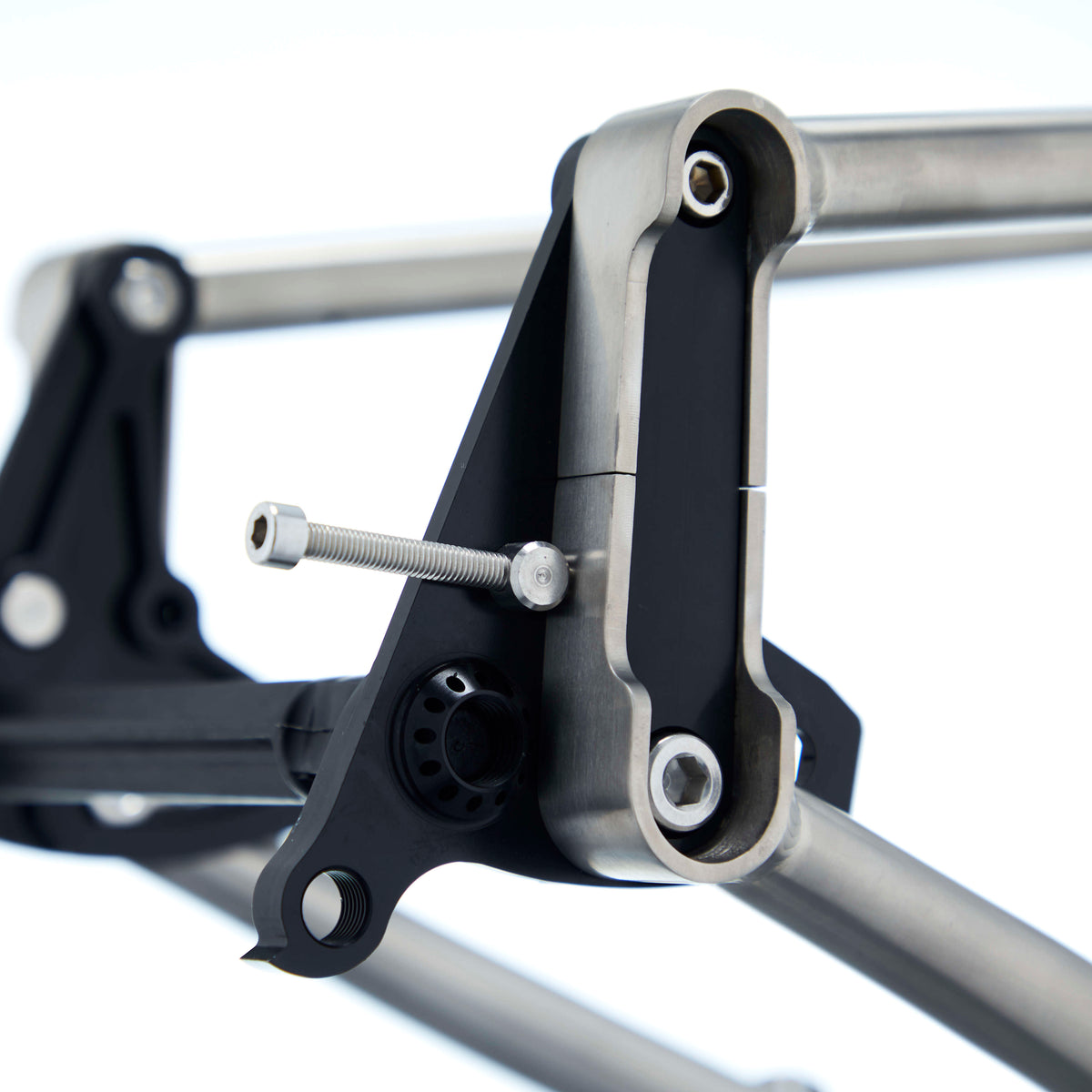

rock n rollout dropouts

The RocknRollout Dropout is at the heart of the OLSEN frame design. We have focused our design around the rear derailleur dropout, but taken it further. Most bicycle frames have replaceable dropouts, but they do not allow for anything other than a derailleur. This idea came from the fact that UK riders often have a winter bike, which is often single-speed.

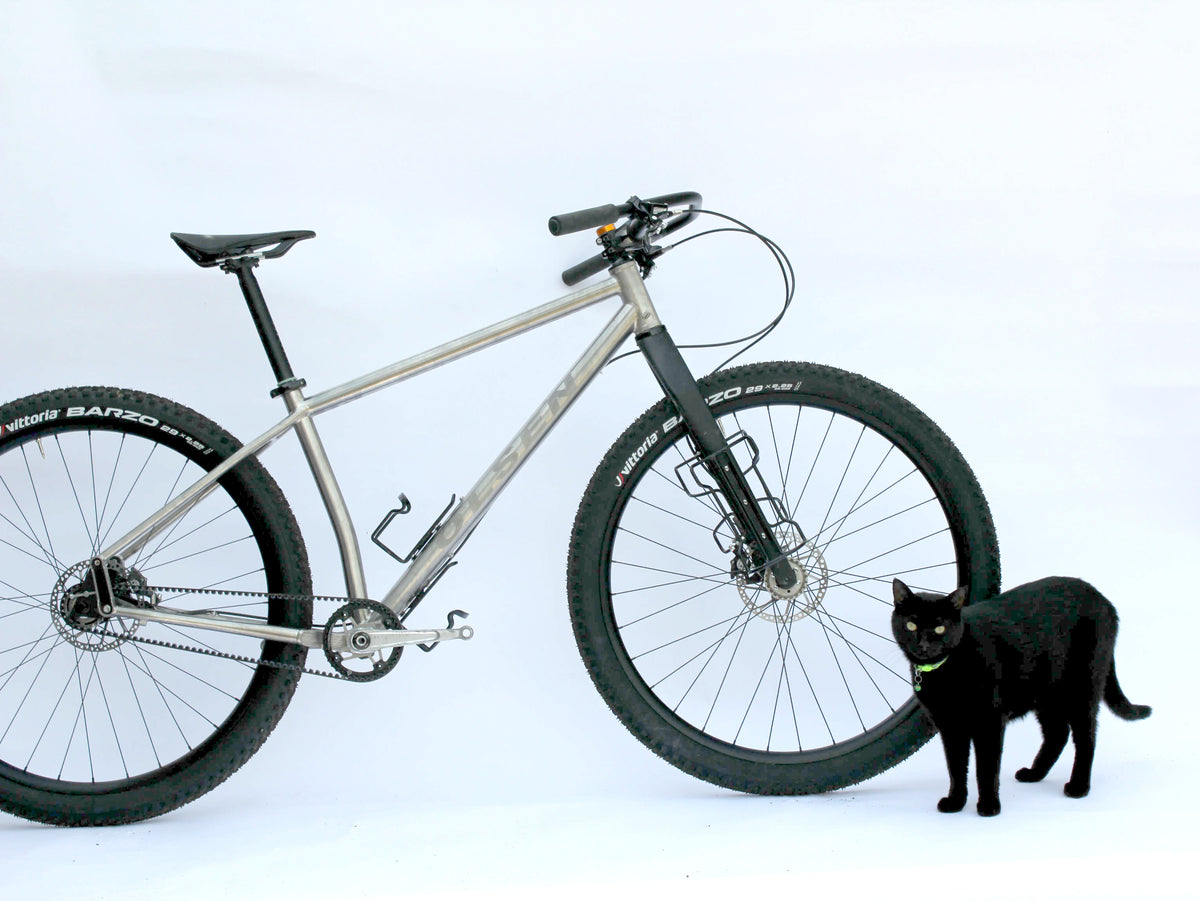

t47 x 92 bottom bracket

There is a lot going on in this part of the bike frame. Tyre and chainring clearance, but also frame stiffness. T47 internal keeps the bottom bracket nice and wide, while resolving the issues with PF92.  A 92mm shell allows the chainstays to be wider, providing more tyre clearance.  92mm also means that the chainstays can be welded wider on the frame, making the bottom bracket area stiffer for belt drive use.

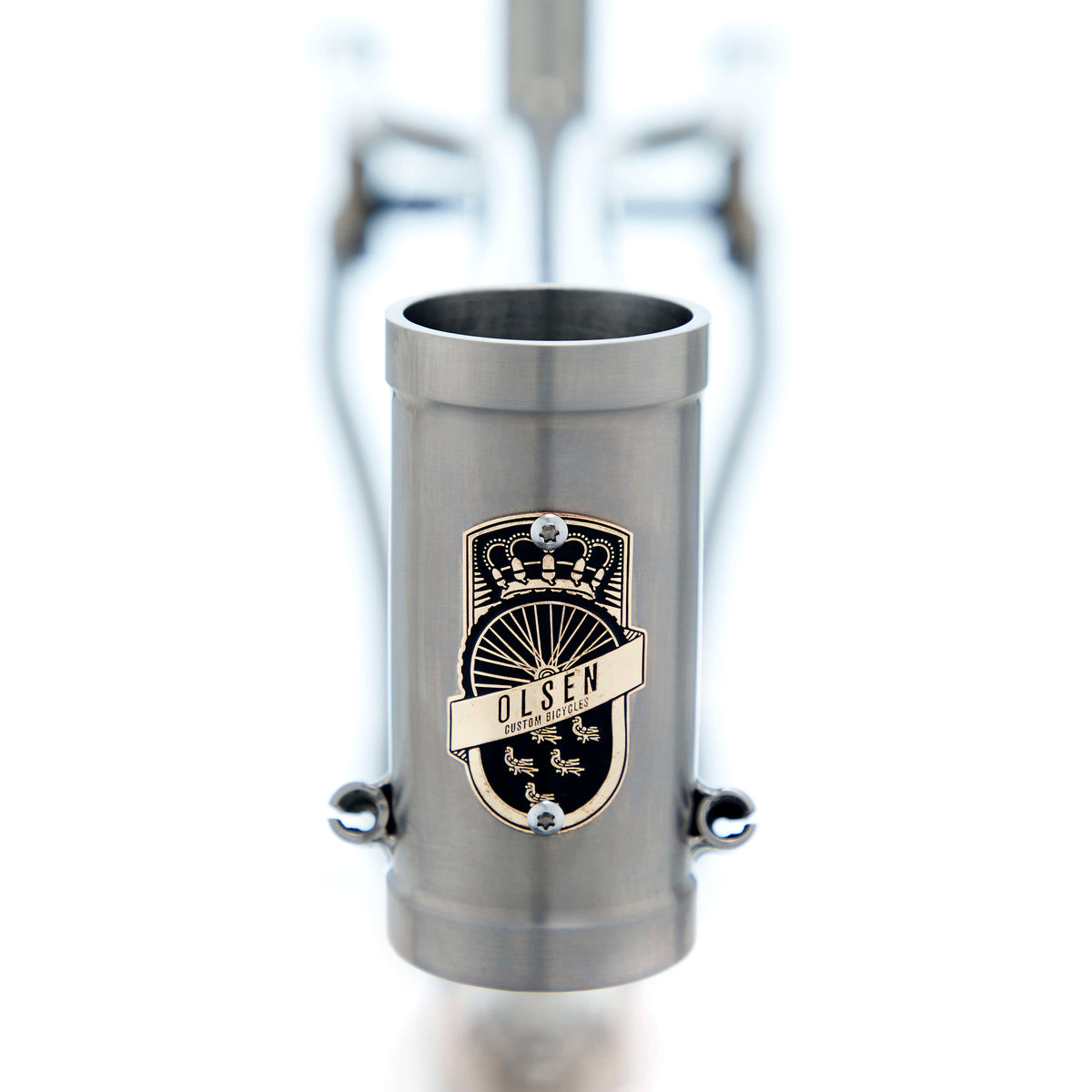

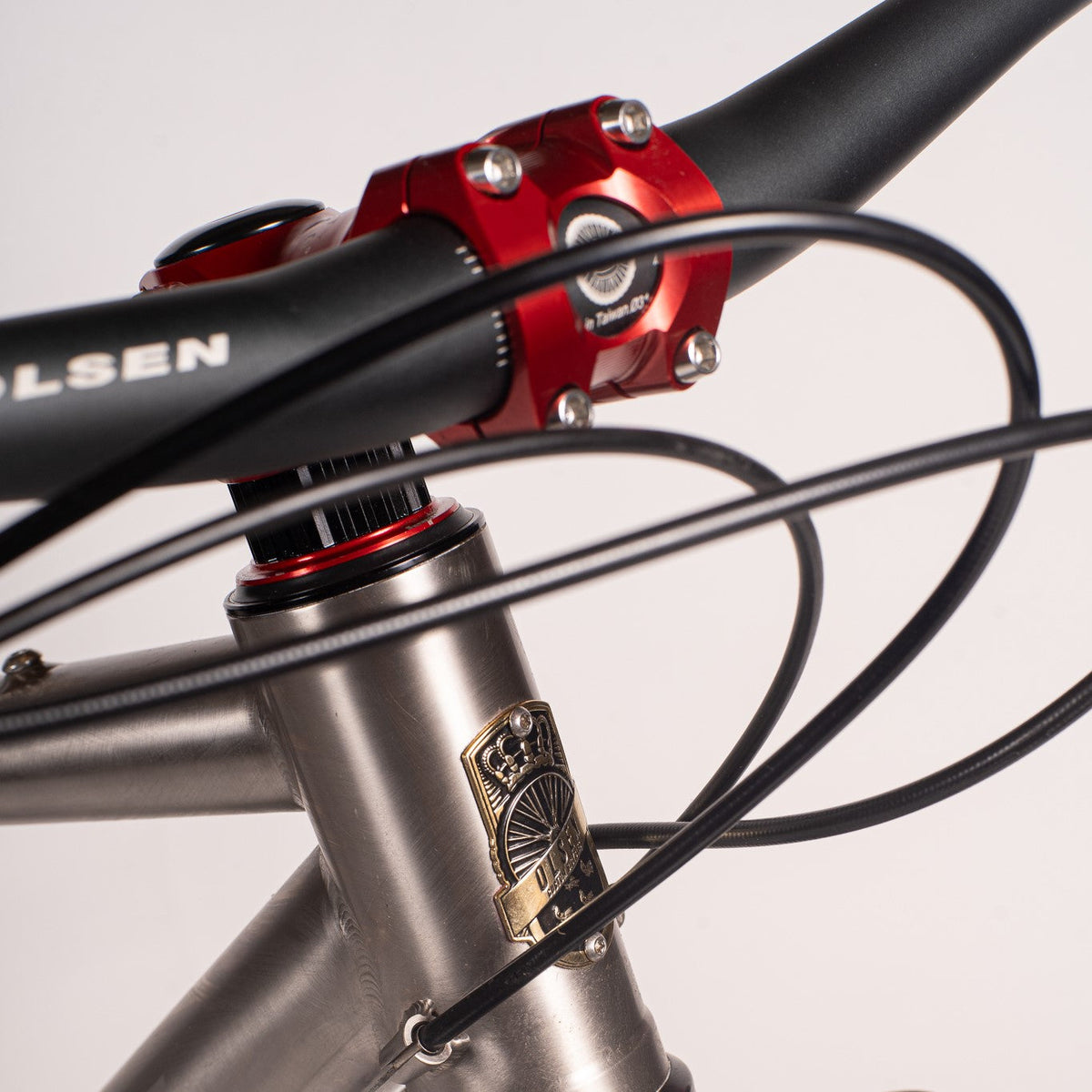

headset zs44 ec44

I chose the straight 44mm Headset "standard" for several reasons. They are straight and keep a simple look, while hiding their versatility. Zero Stack 44mm (ZS44) top or bottom cups and the External Cup 44mm (EC44) bottom cup. In SHIS codes 44/44 allows for both Tapered Carbon fork steerers using ZS44/EC44 and is backward compatible with straight steerers with either a crown reducer or a ZS44/ZS44 headset.

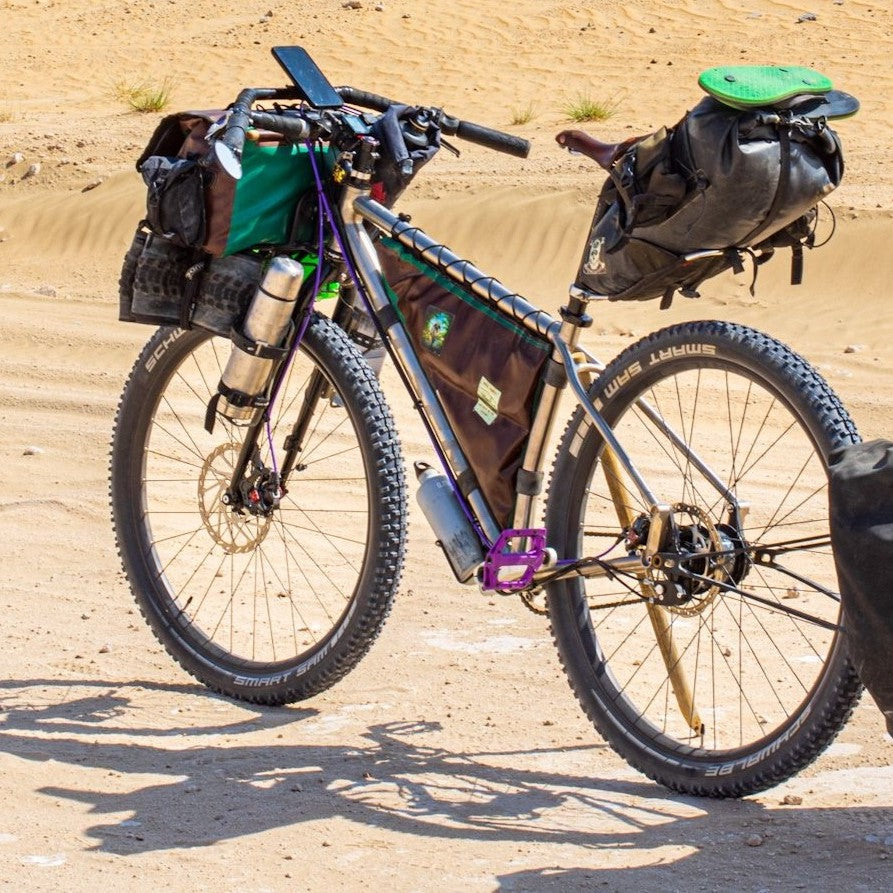

a12 rohloff compatible

If you're planning a long-distance bike packing tour, one of the best upgrades you can make to your bike is to switch to a Rohloff geared hub. A Rohloff Speedhub offers a number of benefits over a traditional derailleur system.
Its durability, smooth shifting, and wide range of gears make it the perfect choice for touring on any terrain.

made in the UK

Olsen Bikes are now making Titanium Frames in the UK. We wanted to develop lighter frames and offer custom geometries. We have been working with 3D printed titanium to get faster production results. We prefer to use Columbus Hyperion Titanium, however we canalso use plain guage or Dedaccia or Reynolds. We use grade 5 6AL4V and grade 9 3AL2.5V double butted Titanium to reduce the frame weight.

In 2024 Olsen Bikes have put all of this together to launch our Titanium frames which are Faster, Lighter and offer more custom geometries. We can design a geometry based on experience from our standard bike range. Olsen Bikes have simplified our prices across the range and can offer Pinion, Shimano or SRAM bikes with Hope Finishing Kit.

how it works

Place a deposit to secure your delivery slot. (Refundable deposit £ 1,000.00) and Stevo the Olsen Bike designer, will work with you to create a design before the next stage.

frameset

Price EX-VAT: £2999
RRP Price with VAT: £3599

  • Titanium Frame
  • Kinesis Gravel fork
  • Hope Headset
  • Hope or Praxis Bottom Bracket

This can become the basis of the bike of your dreams that you can build up with spares.

We can now do the Lamb with 142mm or 148mm rear ends to suit your wheels and derailer drivetrain.

Pinion frameset

Price EX-VAT: £4499
RRP Price with VAT: £5399

  • FRAME: Tiger Pinion
  • FORK: Columbus Futura Adventure 3 Bolt Fork

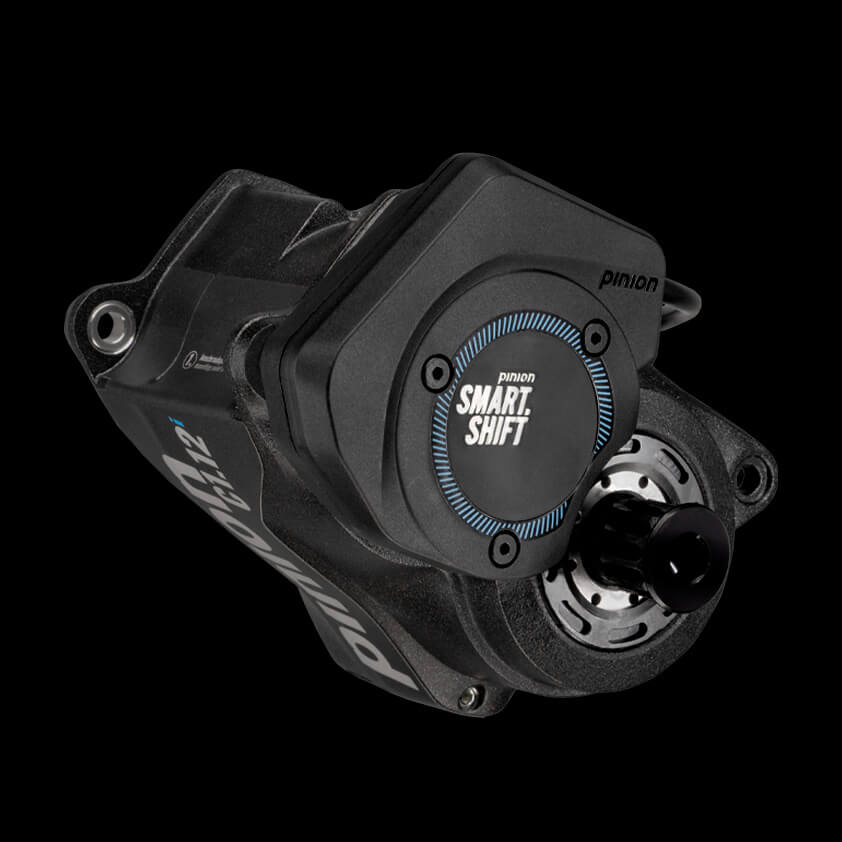

  • Gearbox: Pinion C1.12 Smart.Shift
  • Headset: Hope Headset

This can become the basis of the bike of your dreams that you can build up with spares.

shimano XT bike

Price EX-VAT: £6499
RRP Price with VAT: £7799

  • Frame: Titanium
  • Fork: Columbus Futura Adventure 3 Bolt Fork
  • Groupset: Shimano XT
  • Brakes: Hope Tech4 X2
  • Brake Levers: Hope Tech4 X2
  • Rear Mech: XT 12-speed
  • Cassette: XT 12 10-51T
  • Chainset: Hope Evo or XT
  • Chain: Ultegra / XT M8000
  • Bottom Bracket: Praxis T47x86 Inboard 24mm
  • Saddle: SELLE ITALIA X1
  • Seatpost: Olsen Titanium 31.6mm
  • Disc Rotors: 180/160mm
  • Wheels: Hope Fortus 30SC Pro5 Hubs

Pinion smart.shift bike

Price EX-VAT: £6499
RRP Price with VAT: £7799

  • FRAME: Titanium Pinion
  • FORK: Columbus Carbon Boost Fork
  • Gearbox: Pinion C1.12i Smart Shift
  • Brake Calipers: Hope X2
  • Front Sprocket: 32T CDX
  • Rear Sprocket: 30T CDX
  • Chain: GATES 113T CDX
  • Saddle: SELLE ITALIA X1 (narrow) or X3(wider)
  • Seatpost: Olsen Titanium 31.6mm
  • Disc Rotors: 180/160mm 6-BOLT
  • Wheels: Hope Pro5 Wheels with Fortus 30SC rims
